Operate Module Builder Gate and Handler Cylinder Locks

Module Builder Gate Function: Place the gate in handler if operator enters the module chamber. If this configuration is not possible and the gate is supported by only hydraulic cylinders, follow these steps.

1. Fully raise gate.

2. Lower to desired position.

3. Engage hydraulic lock valve lever (A).

4. Disengage hydraulic lock valve.

5. Fully close gate before moving machine.

Handler Function: Place the handler on the ground if operator works on or around handler. If this configuration is not possible and the handler is supported by only hydraulic cylinders, follow these steps.

1. Fully raise handler.

2. Lower to desired position.

3. Engage hydraulic lock valve lever (B).

4. Disengage hydraulic lock valve.

5. Fully raise handler before moving machine.


A-Hydraulic Lock Valve Lever
B-Hydraulic Lock Valve Lever

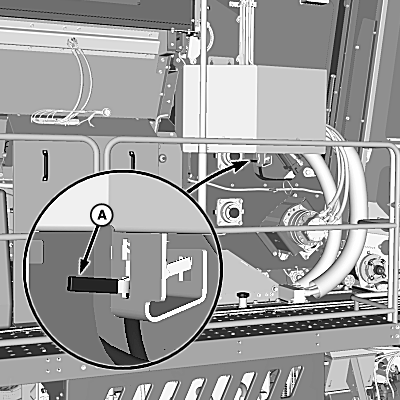

N83562

Module Builder Gate Lockout Valve

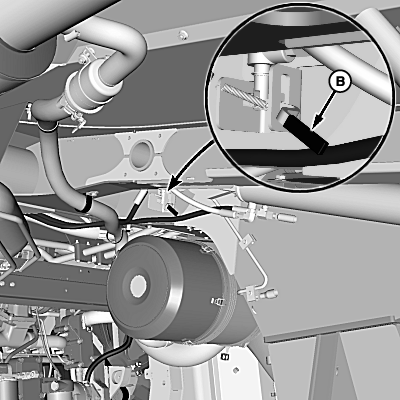

N83431

Handler Lockout Valve

OUO1078,0000235 -19-04MAR09-1/1
