Auxiliary Water System

NOTE: As the auxiliary water system nozzle is depressed a slight pause occurs before pump provides full stream.

Auxiliary water system (A) is available as an alternate water supply in case of fire. The auxiliary water system is located on the cab platform. Read the instruction label located on the box lid on how to use and maintain the system.

IMPORTANT: To keep auxiliary water system functioning correctly:

  • Maintain 50 gallons in moisture system tank

  • Operate spray nozzle (B) daily

  • Drain electric pump (C) to prevent damage from freezing

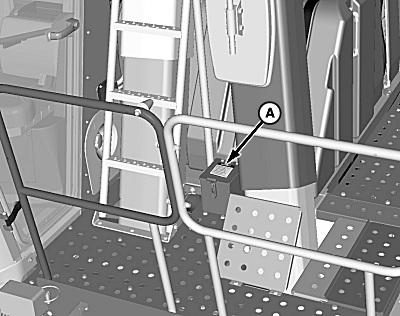

A-Auxiliary Water System

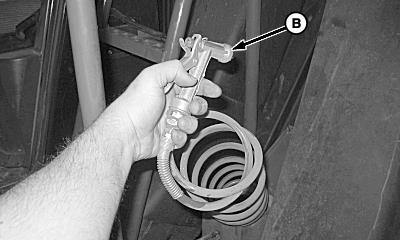

B-Spray Nozzle

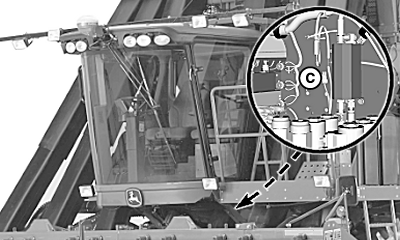

C-Electric Pump

N83567
N83568
N83569

OUO1078,000023B -19-06APR09-1/1
