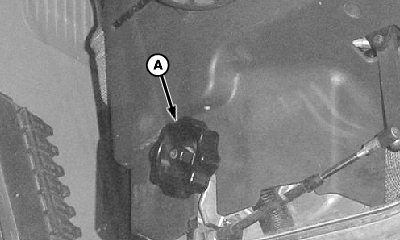

Right-Hand Armrest and Control Console-Adjusting (Rotating Cam System)A single control moves the right-hand armrest and control console. To adjust the armrest, push in on knob (A) and rotate either direction for desired working position.
|
|
OUO1078,0000245 -19-13MAR09-1/1 |
