After Ten Hours
1.
Check drive wheel and power rear guide wheel lug bolt torques. Tighten to specification.
Specification
|
Drive Wheels
-Lubricated Torque
|
610 N·m
|
(450 lb-ft)
|
|
Power Rear Axle Wheels
-Lubricated Torque
|
610 N·m
|
(450 lb-ft)
|
|
Power Rear Center Disk to Waffle Rim
-Torque
|
322 N·m
|
(245 lb-ft)
|
2.
If torque fails to stabilize after first ten hours, tighten to above values every ten hours. After torque stabilizes, tighten every 100 hours.
|
|
|
|
OUO1078,0000248 -19-16MAR09-1/4
|
|
3.

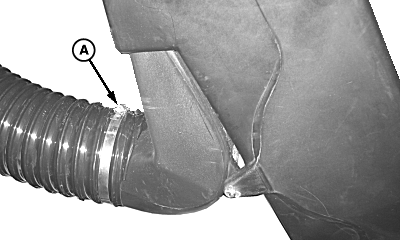

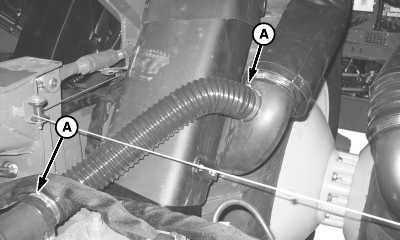

Tighten air system hose clamps (A) to specification.
Specification
|
3 in. Hose Clamp
-Torque
|
5 N·m
|
(45 lb-in.)
|
|
6 in. Hose Clamp
-Torque
|
9 N·m
|
(80 lb-in.)
|
4.
Check module feed conveyor belt.
5.
Check cotton fan drive belts tension. Adjust if necessary. (See Adjusting Cotton Fan Belt And Guides in Air System section.)
A-Hose Clamps
|
3 in. Hose Clamps
6 in. Hose Clamps
|
|
|
OUO1078,0000248 -19-16MAR09-2/4
|
|
6.

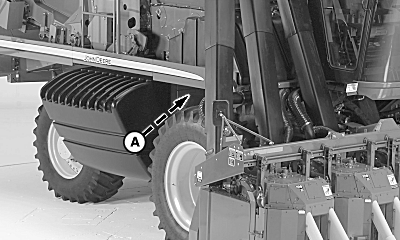

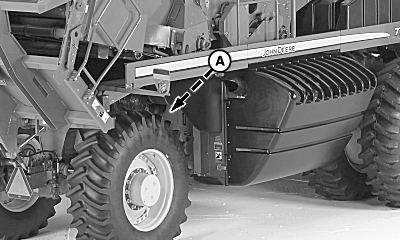

Inspect engine and fan compartment (A) for trash. Clean as necessary to prevent buildup.
A-Engine and Fan Compartment
|
|
|
|
OUO1078,0000248 -19-16MAR09-3/4
|
|
7.

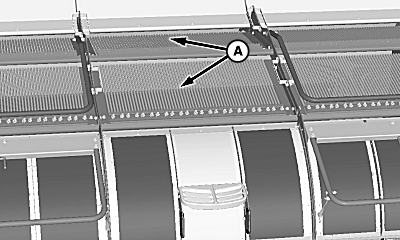

Inspect finger grates (A) for bent or damaged fingers.
8.

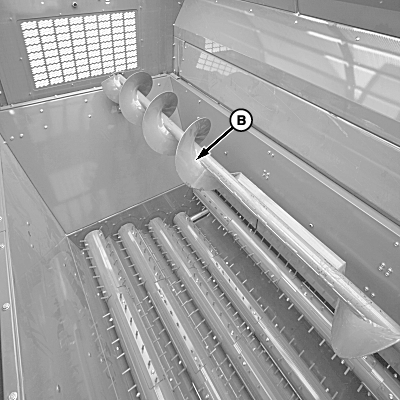

Inspect auger (B) for excessive play in spline connection.
A-Finger Grates
B-Auger
|
|
|
|
