End Of Field

NOTE: This mode only works with engine running at full speed to assure all components are feeding at appropriate speeds.

1. Stop machine, engage parking brake, raise picking units and run picking units for 20-30 seconds to clean off all excess cotton.

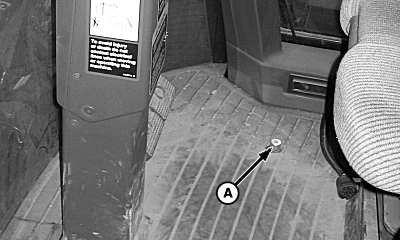

2. Press and hold accumulator empty button (A) on floor of cab to empty accumulator.

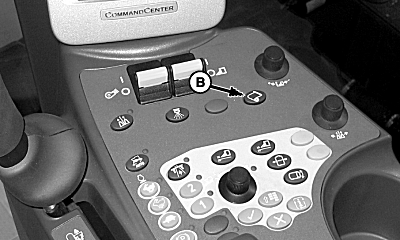

3. Press and hold manual wrap button (B) for three seconds until wrap icon appears on cornerpost.

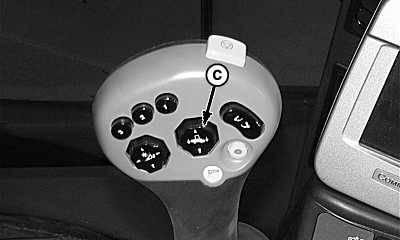

4. Press and hold auto mode button (C) until wrap sequence is complete. Release auto mode button.

5. Press and hold auto mode button (C) until eject sequence is complete. Eject cycle is complete when gate icon stops flashing.

Unloading Instructions
1. Empty Press and hold floor switch.
2. Wrap Press and hold "Wrap Request" button on armrest control console for 3 seconds.
Press and hold "Auto Mode Engage" button on multifunction control handle until wrap cycle is complete.
3. Eject Release then press and hold "Auto Mode Engage" button until eject cycle is complete.




A-Accumulator Empty Button
B-Manual Wrap Button
C-Auto Mode Button

N80890
N80891
N80892
N83798
