Parking Machine

1. Stop machine on a level surface and engage park brake switch.

2. Push low engine speed button (A) to idle engine.

3. Using raise/lower all units button (B) on multifunction control handle, lower units to ground.

4. Disengage fan switch (C) and row units switch (D).

5. Turn off all lights and accessories.

IMPORTANT: Before stopping engine that has been operating at working load, run engine at least two minutes at idle to cool turbocharger and hot engine parts. If engine is not properly cooled, damage can result.

6. Turn off key switch and remove key.

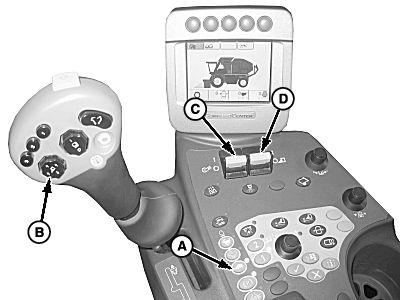

N80831


A-Low Engine Speed Button (Idle)
B-Raise/Lower All Units Button
C-Fan Switch
D-Row Units Switch

OUO1078,000024B -19-18MAR09-1/1
