Positioning Machine for Transport

1. Press mode select button (A).


A-Mode Select Button

N80832

OUO1078,0000251 -19-18MAR09-1/5

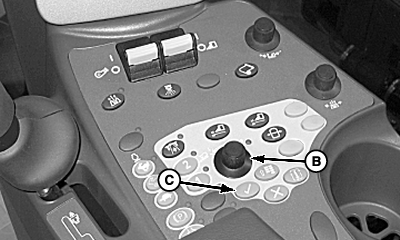

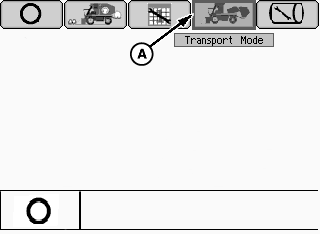

2. Rotate selection dial (B) until transport mode icon (A) is highlighted. Push confirm button (C).


A-Transport Mode Icon
B-Selection Dial
C-Confirm Button

N80835
N80834

OUO1078,0000251 -19-18MAR09-2/5

causym CAUTION: RMB latch lever (A) is spring loaded. Release latch using foot to avoid injury.

NOTE: Operator does not need to reset spring, it will reset the latch while machine goes into transport mode.

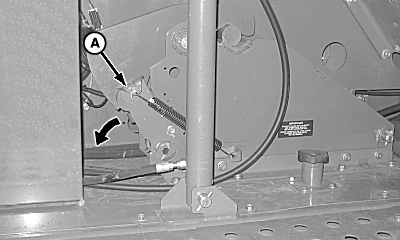

3. Rotate latch Lever (A) in direction shown.


A-Latch Lever

N80833

Latch Lever in Locked Position

OUO1078,0000251 -19-18MAR09-3/5

4. Open door and remove tether (A).


A-Tether

N80836

OUO1078,0000251 -19-18MAR09-4/5

NOTE: Short delays in machine motion is normal, continue to hold button "D" until machine is fully configured in transport mode.

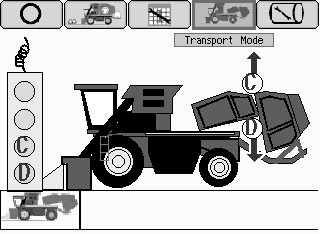

5. Push and hold tether button "D" to place machine in transport mode.

6. Return tether to storage position and close door.

N80425

OUO1078,0000251 -19-18MAR09-5/5
