OMN300606: 7760 Cotton Picker(N07760X028001- ), Block File: OUO1078_0000252_19

1. Press mode select button (A).

A-Mode Select Button

OUO1078,0000252 -19-18MAR09-1/4

2. Rotate selection dial (B) until transport mode icon (A) is highlighted. Push confirm button (C).

A-Transport Mode Icon
B-Selection Dial
C-Confirm Button

OUO1078,0000252 -19-18MAR09-2/4

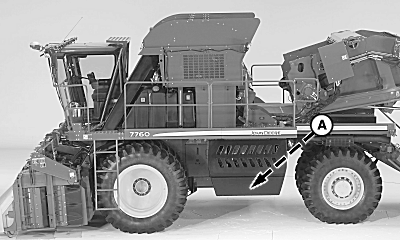

3. Open door and remove tether (A).

A-Tether

OUO1078,0000252 -19-18MAR09-3/4

NOTE: Short delays in machine motion is normal, continue to hold button "C" until machine is fully configured in harvest mode.

4. Push and hold tether button "C" to place machine in harvest mode.

5. Return tether to storage position and close door.

OUO1078,0000252 -19-18MAR09-4/4
