Verify Solution Pump Primed

IMPORTANT: Damage to solution pump will occur if pump runs dry. If the fan must be run without solution in the tank, ALWAYS REMOVE pump drive belt. DO NOT allow pump to run dry.

1. 50 gallon minimum in water tank.

2. Open both water filter valve (A) and solution pump bleed valve (B).

3. Close bleed valve after air is purged from pump.

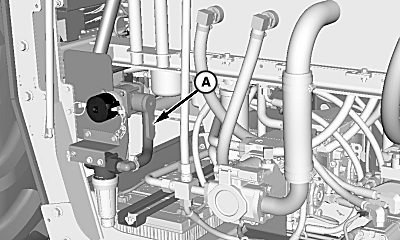

A-Remote Fill Valve

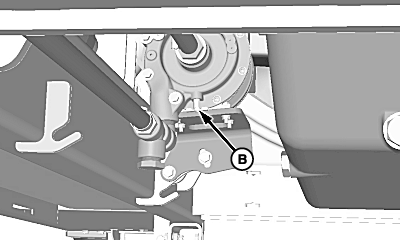

B-Solution Pump Bleed Valve

N83894
N83895

OUO1078,000025B -19-24MAR09-1/1
