Checking And Adjusting Wrap Feeder Belt Tension

1. To adjust each wrap feeder belt (A), loosen nut in slot (B).

2. Adjust all belts tight with no slack.

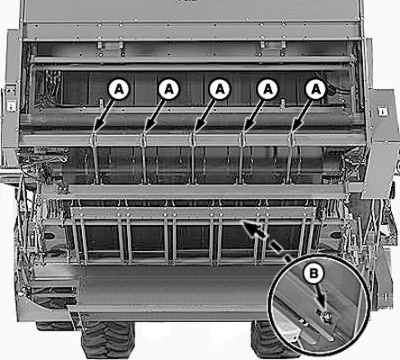

A-Wrap Feeder Belts
B-Adjusting Slot

N75634

OUO1078,0000262 -19-25MAR09-1/1
