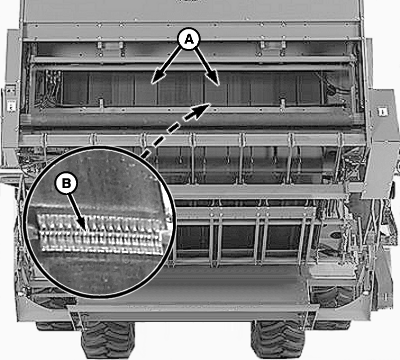

Check Module Builder Forming Belts And Pins1. Check all eleven forming belts (A) for wear or damage.2. Check all belt laces for damage and pullout from belts. If any lace rivets have pulled through a belt section, replace belt. 3. Check all lacing pins (B). Replace pins if broken, or if more than one-third of pin thickness is worn. Do not deform ends of pins when installing new ones.
|
|
OUO1078,0000263 -19-25MAR09-1/1 |
