Loading Module Builder Wrap

1. Push mode select button (A).


A-Mode Select Button

N80832

OUO1078,0000264 -19-20APR09-1/12

2. Highlight daily service icon (A) using selection dial (C) and press confirm button (B).


A-Daily Service Icon
B-Confirm Button
C-Selection Dial

N81011
N81007

OUO1078,0000264 -19-20APR09-2/12

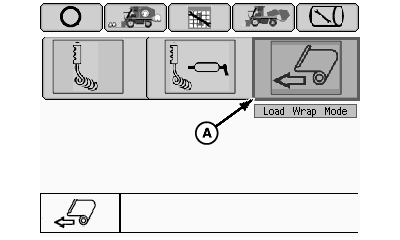

3. Highlight load wrap mode icon (A) using selection dial and press confirm button.


A-Load Wrap Mode Icon

N81012

OUO1078,0000264 -19-20APR09-3/12

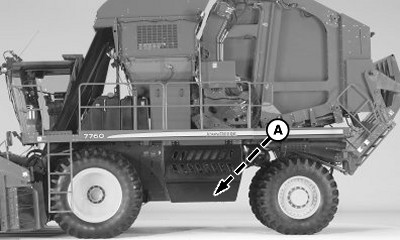

4. Open door and remove tether (A).


A-Tether

N80836

OUO1078,0000264 -19-20APR09-4/12

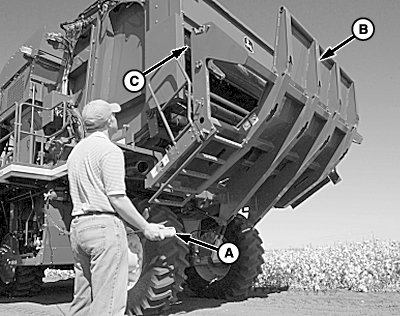

5. Press and hold button "A" on tether to raise scissor lift (C). Make sure scissor lift is fully raised.

6. Lower handler (B) by pressing button "D" on tether (A).


A-Tether
B-Handler
C-Scissor Lift

N76986

OUO1078,0000264 -19-20APR09-5/12

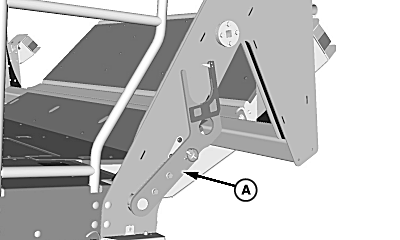

7. Remove wrap holder from storage position (A) and install in wrap load position (B).


A-Storage Position
B-Load Position

N83900
N83901

OUO1078,0000264 -19-20APR09-6/12

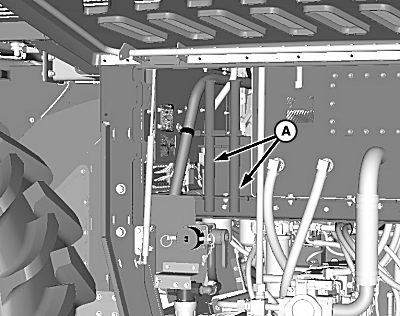

8. Install wrap handles (A) in the ends of the wrap roll to assist in loading wrap.


A-Wrap Handles

N84230

OUO1078,0000264 -19-20APR09-7/12

IMPORTANT: This step requires a second person to assist in placing wrap in holders. The approximate weight of the wrap is 91 kg (200 lb).

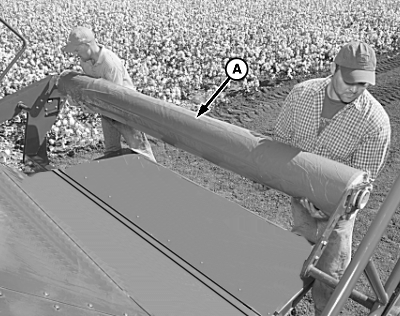

9. Place wrap (A) in holders.


A-Wrap Roll

N76985

OUO1078,0000264 -19-20APR09-8/12

NOTE: Four rolls of wrap can be stored on the machine not including the one being used.

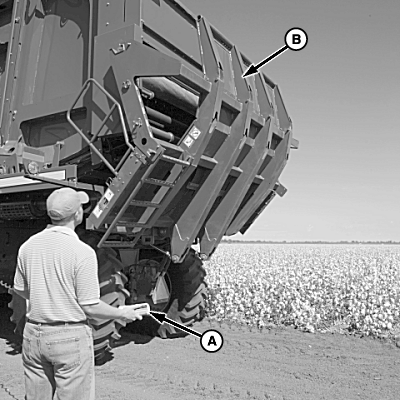

10. Raise handler (B) by pressing button "C" on tether (A), until handler motion stops.

11. Press button "B" on tether to lower scissor lift. Scissor lift tubes will go around wrap roll being loaded.

12. Press button "A" on tether to raise scissor lift with wrap rolls. Continue to raise until motion stops.


A-Tether
B-Handler

N76987

OUO1078,0000264 -19-20APR09-9/12

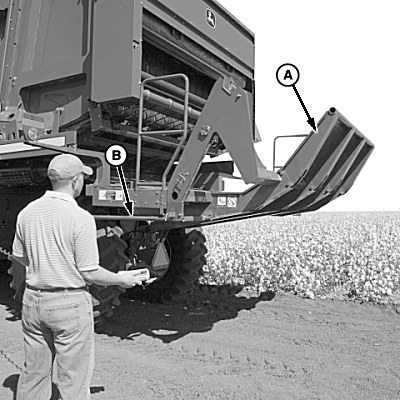

13. Lower handler (A) to position shown.

14. Remove wrap holders and place them in storage position.

15. Release ladder (B) from storage position.


A-Handler
B-Ladder

N76988

OUO1078,0000264 -19-20APR09-10/12

causym CAUTION: Stay back from machine and roller area to avoid entanglement.

NOTE: Before loading wrap, verify wrap box does not have a roll loaded on lower rollers.

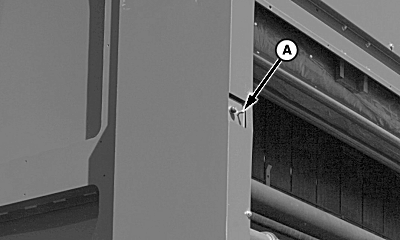

16. Lower wrap into position by pushing down on switch (A). Wrap will lower into position on rubberized wrap rollers.

17. Raise scissor lift with wrap rolls using switch (A) until motion stops.


A-Switch

N76989

OUO1078,0000264 -19-20APR09-11/12

NOTE: See instructional decal on wrap box side for proper routing of wrap.

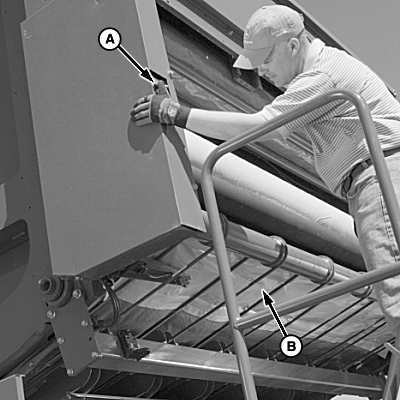

18. Feed wrap (B) into position using switch (A).

19. Lower scissor lift using switch (A) approximately 51 mm (2 in.) or until wrap roll that is in position stops moving.

20. Fold ladder into storage position.

21. Return tether to storage position.

22. Return machine to "Harvest Mode".


A-Switch
B-Wrap

N77038

OUO1078,0000264 -19-20APR09-12/12
