Record Product ID and Component Serial Numbers

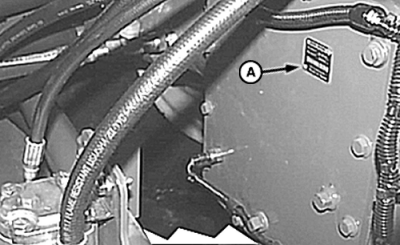

Machine product identification number (A) is on the inside rear of mainframe. Record it in the space provided.

Identification Number _________________________

A-Product Identification Number

OUO1078,000027E -19-27MAR09-1/8

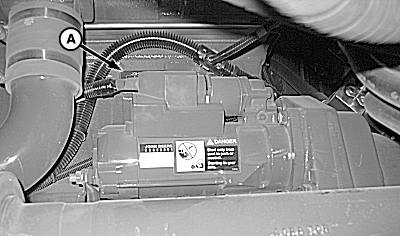

Engine serial number (A) is on the side of the engine block, located behind the starter. Record it below.

Engine Serial Number _________________________

A-Engine Serial Number

OUO1078,000027E -19-27MAR09-2/8

Pump drive gear case serial number is located on front side of gear case, above sight glass.

Pump Drive gear Case Serial Number _________________________

The unit drive hydrostatic motor serial number is located on top of the motor. Record it below.

Motor Serial Number __________________________

A-Pump Drive Gear Case Serial Number

OUO1078,000027E -19-27MAR09-3/8

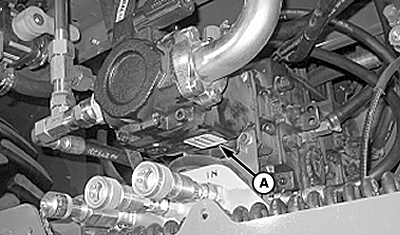

The unit/auxiliary pump stack serial number (A) is on front, bottom side of pump.

Unit/auxiliary pump stack Serial Number_____________________________

OUO1078,000027E -19-27MAR09-4/8

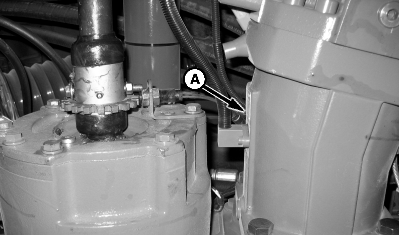

The front propel hydrostatic motor serial number (A) is located on the front side of the propel motor.

Front Propel Motor Serial Number____________________________

Rear Propel Motor Serial Number____________________________

Propel Pump Serial Number____________________________

Unit Drive Motors 1 and 2 Serial Number____________________________

A-Propel Hydrostatic Motor Serial Number

OUO1078,000027E -19-27MAR09-5/8

The transmission serial number (A) is located on the rear side of the transmission case.

Transmission Serial Number____________________________

A-Transmission Serial Number

OUO1078,000027E -19-27MAR09-6/8

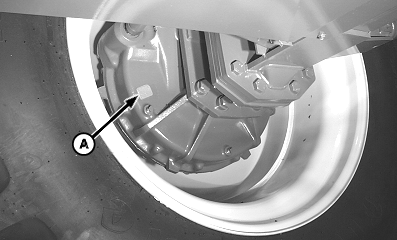

The final drive serial number (A) is located above drain plug on final drive case.

Left-Hand Final Drive Serial Number____________________________

Right-Hand Final Drive Serial Number____________________________

A-Final Drive Serial Number

OUO1078,000027E -19-27MAR09-7/8

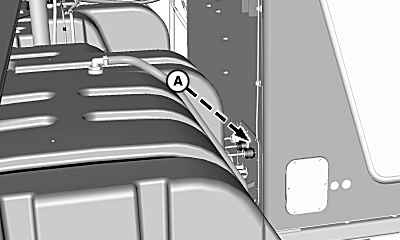

Cab serial number (A) is on the right-hand lower rear cab corner. Record it below.

Cab Serial Number ___________________________

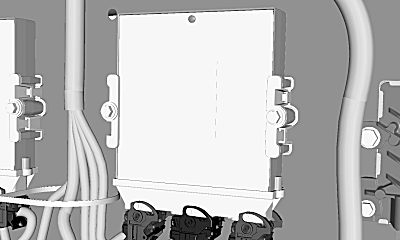

Controller serial numbers are located on the back of the housing. Record below or in the spaces provided.

Engine Controller (In Power Module) Serial Number________________________

Vehicle Controller (In Power Module) Serial Number________________________

ROW-TRAK Controller (Optional) Serial Number________________________
