Jacking Up Rear Axle

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Use a jack with a minimum jacking capability of 18,144 kg (20 tons). Machine must be on a flat, level surface with transmission in neutral, park brake switch engaged and key removed.

Machine must be in harvest mode before jacking procedure is performed.

IMPORTANT: Machine damage can occur. Jack up machine only at designated jacking locations.

1. Position machine in harvest mode and on a flat, level surface. (See Positioning Machine for Harvest in Operating The Machine section.)

OUO1078,0000281 -19-13APR09-1/3

2. Engage handler hydraulic lock valve (A).

3. Verify axle stops (B) are in storage position.


A-Handler Hydraulic Lock Valve
B-Axle Stop (Storage Position)

TS229
N84172
N84240

OUO1078,0000281 -19-13APR09-2/3

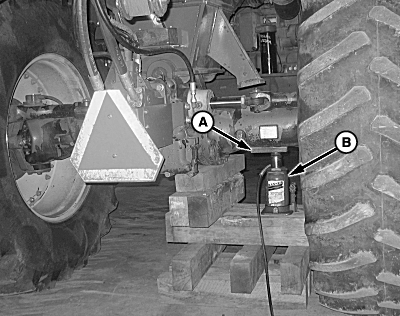

4. Position jack on a solid, flat surface beneath axle.

5. Position steel plate (A) between jack (B) and axle to avoid damage to axle housing.

causym CAUTION: Machine is heavy and can fall or roll causing serious injury or death to you or others. Clear all bystanders away from machine before jacking up machine.

6. Clear all bystanders away from machine, then using jack, raise machine only enough to change or repair tire.

Specification

Power Rear Axle Wheel Cap Screws -Lubricated Torque 610 N·m  (450 lb-ft)
Power Rear Wheel Center Disk to Waffle Rim Cap Screws -Dry Torque 332 N·m (245 lb-ft)

7. Lower machine to ground and verify axle stops are in storage position.

8. Disengage handler hydraulic lock valve.

N84213


A-Steel Plate, Minimum 6.35 mm (0.25 in.) Thickness
B-Jack

OUO1078,0000281 -19-13APR09-3/3
