Repair Broken Wrap Core

1. Cut a 254 mm (10 in.) long cylinder from a used wrap core.

2. Measure the perimeter distance (A) and mark cylinder (B).

3. Cut and remove section (C).

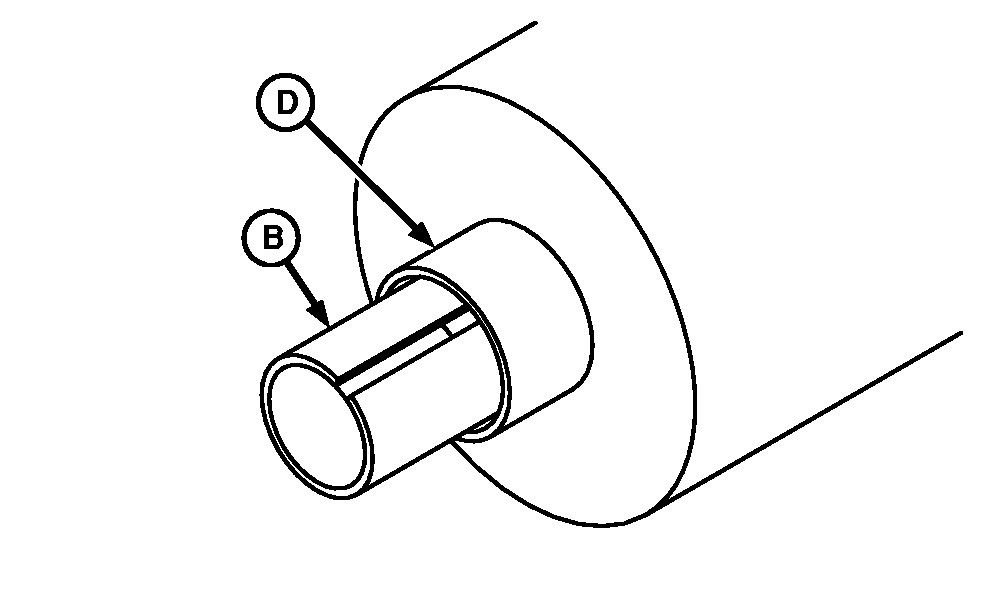

4. Compress cylinder (B) and insert into broken core (D) until both edges are flush to each other.


A-Perimeter Distance, 41 mm (1.63 in.)
B-Cylinder
C-Section
D-Broken Core

N81505
N81927

OUO1078,0000284 -19-08APR09-1/1
