Seat Suspension and Forward and Rearward Adjustment-Air Ride Seat

Vertical shock dampener handle (A) allows the operator to limit the amount of "upward motion" the seat suspension provides.

Push the control forward for the softest ride. Move the handle back for the firmest ride. Between these two positions is the medium firmness position.

Height adjustment is made with handle (B). To raise the seat, pull up on the handle. To lower the seat, push down on the handle.

NOTE: The suspension can be adjusted to reach limits in the minimum and maximum heights which, in effect, locks out the suspension system, making it rigid. The suspension height control will also hit the limits if adjusted too close to the extremes.

The forward/rearward adjustment handle (C) allows the seat to slide forward or rearward for best working position.

Seat bottom tilt control handle (D), allows the front of the seat cushion to be raised or lowered for the best working position.

Attenuator lockout handle (E) locks out or releases the forward or rearward movement. Pull up on the handle to lock; push down on the handle to release.

The forward/rearward adjustment handle (F) allows the seat bottom to slide forward or rearward for the best working position.

NOTE: If the seat does not float or "pump" up, see your John Deere dealer.

The air seat also has the Operator Presence System.

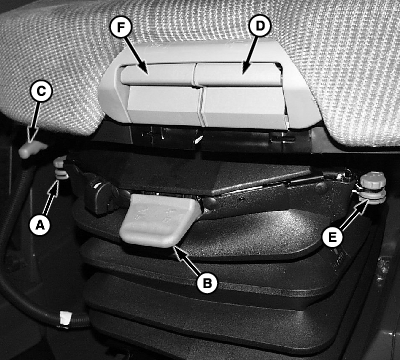

A-Vertical Shock Dampener Control
B-Height Adjustment Handle
C-Forward/Rearward Adjustment Handle
D-Seat Bottom Tilt Control Handle
E-Forward/Rearward Attenuator Lock-Out Handle
F-Seat Bottom Forward/Rearward Adjustment Handle
