Remove and Replace Rotary Knife Sections

causym CAUTION: To avoid personal injury, always wear gloves when handling knives.

1. Remove flange head cap screws (A) and guard (B).

2. Remove lock nuts and cap screws (C) and knife section.

3. Install new knife section in reverse order as removed.

4. Tighten lock nut (C) to specification.

Specification

Lock Nut -Torque 12 N·m (102 lb-in.)

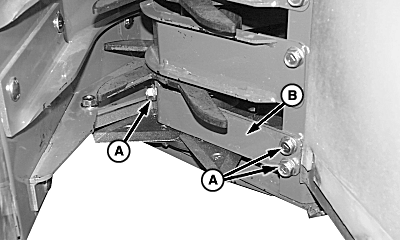

A-Flange Head Cap Screw
B-Guard

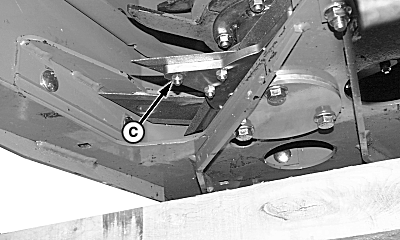

C-Lock Nut and Cap Screw (3 used)

N64691
N64497
N64498

OUO1078,00004A1 -19-21MAR06-1/1
