Replacing Cab Headlight Bulb

CAUTION: Fully raise row units and lower safety stops before standing on row units to replace or adjust bulbs.

Read SAFETY RULES WHEN REPLACING HALOGEN BULBS in this section.

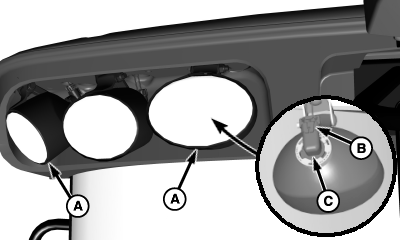

Rotate light assembly (A) upward.

Disconnect wiring harness connector (B).

Turn bulb assembly (C) counterclockwise to remove.

Remove and replace bulb. (See BULB PART NUMBERS in this section for proper replacement.)

Install bulb in reverse order and connect wiring harness.

A-Light Assemblies
B-Connector
C-Bulb Assembly
