Adjusting Cab Headlights

CAUTION: Fully raise row units and lower safety stops before standing on row units to replace or adjust bulbs.

Read SAFETY RULES WHEN REPLACING HALOGEN BULBS in this section.

NOTE: The vertical adjustment of the light assemblies can be rotated up or down in the three notch positions to achieve the correct lighting angles.

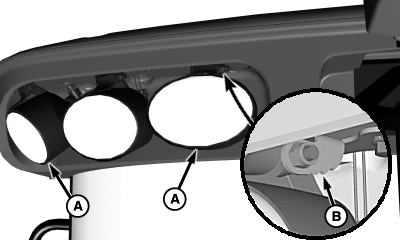

Vertical Adjustment: Light assemblies (A) can be rotated up or down in notches (B).

A-Light Assemblies
B-Notches

OUO1078,00004BB -19-21MAR06-1/2

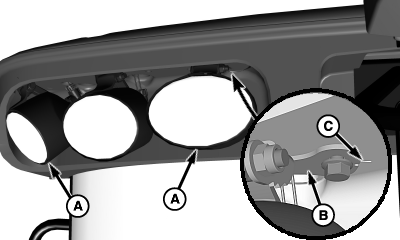

Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws and rotate bracket (B) until notch aligns with indicator line (C).

A-Light Assemblies
B-Bracket
C-Indicator Line
