Replacing High Intensity Discharge (Xenon) Lights (Optional)

CAUTION: Avoid serious injury or death from electrical shock or lamp explosion. This lamp is powered by 25,000 volts. DO NOT begin installation of HID-Xenon lights unless lights are turned OFF, engine is shut OFF, parking brake is set, key is removed and appropriate eye protection is worn.

If HID-Xenon lights were previously operated, wait a minimum of five minutes before servicing bulb.

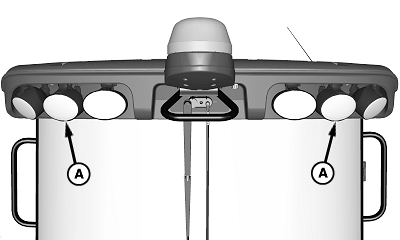

HID-Xenon lights (A) are located in the second and fifth cab light panel holes.

A-HID-Xenon Lights

OUO1078,00004BD -19-29MAR06-1/3

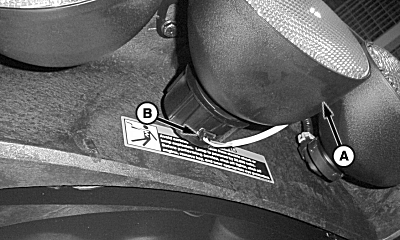

Rotate HID-Xenon light assembly (A) upward and disconnect wiring harness (B).

A-HID-Xenon Light Assembly
B-Wiring Harness

OUO1078,00004BD -19-29MAR06-2/3

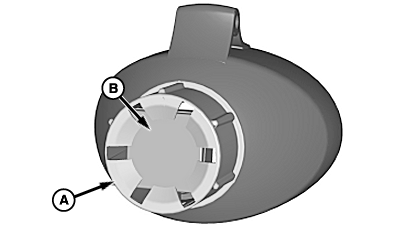

Push in and rotate retainer (A) counterclockwise.

Push in and rotate bulb assembly (B) counterclockwise.

Remove and replace bulb. (See BULB PART NUMBERS in this section for proper replacement.)

Install bulb and retainer in reverse order and connect wiring harness.

A-Retainer
B-Bulb Assembly
