Adjusting High Intensity Discharge (Xenon) Light (Optional)

CAUTION: Fully raise row units and lower safety stops before standing on row units to replace or adjust bulbs.

Read SAFETY RULES WHEN REPLACING HIGH INTENSITY DISCHARGE (HID) XENON BULBS in this section.

NOTE: Vertical adjustment of HID-Xenon light assemblies must be rotated to first notch to achieve correct light angle.

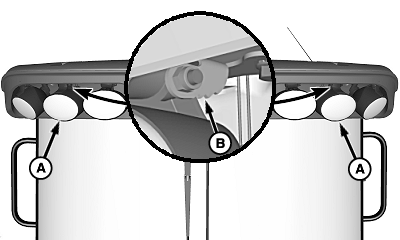

Vertical Adjustment: Rotate light assembly (A) to the first notch (B).

A-Light Assemblies
B-First Notch

OUO1078,00004BE -19-29MAR06-1/2

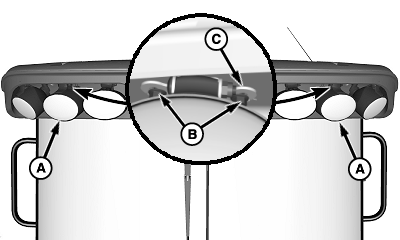

Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws (B) and rotate light bracket (C) toward center of cab and tighten cap screws.

A-Light Assemblies
B-Cap Screws
C-Light Bracket

OUO1078,00004BE -19-29MAR06-2/2
