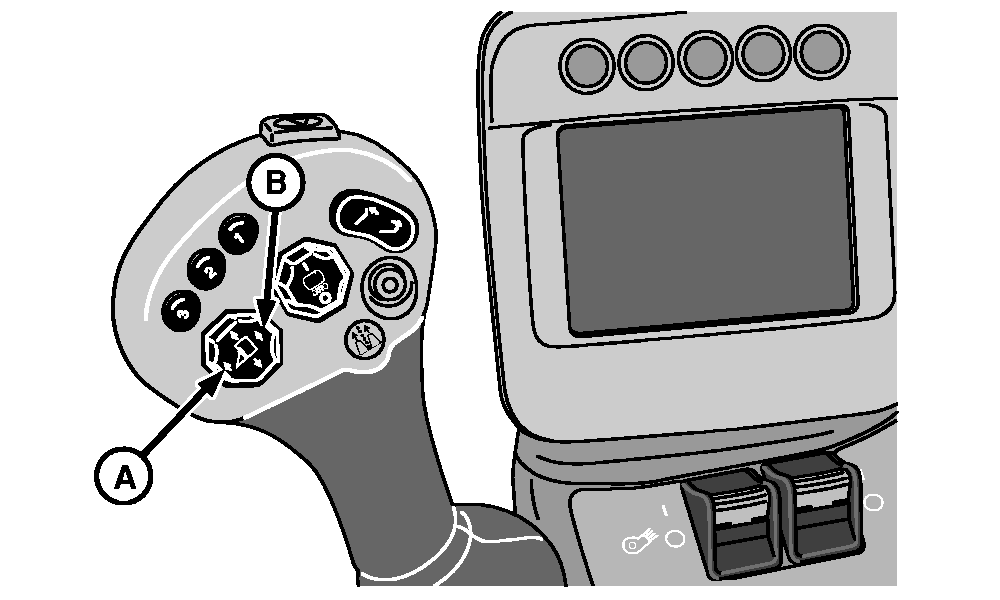

Raise Left and Right-Hand Units ButtonThese buttons are generally used in the field allowing operator to raise only one set of row units to clear an obstacle while the opposite set of units remain at the height programed into the header height control system. Press and hold left-hand units lift button (A) to raise left-hand units only. Press and hold right-hand units lift button (B) to raise right-hand units only.
|
|
OUO1078,0000543 -19-11MAR09-1/1 |
