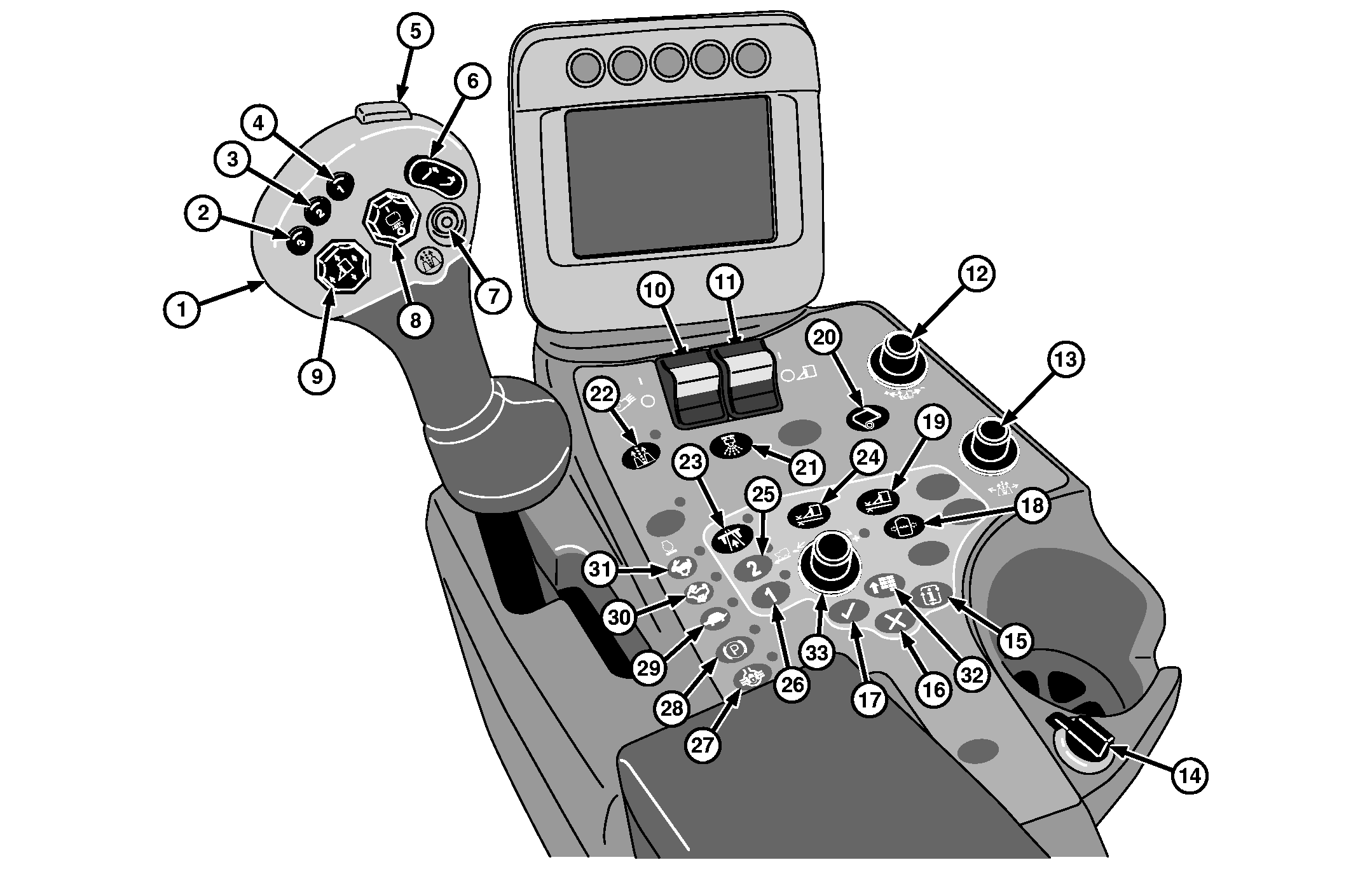

1-Multifunction Control Handle
2-Programmable Button For Armrest Controls
3-Programmable Button For Armrest Controls
4-Solution Flush Button (Factory Setting)
5-Not Used
6-Raise/Lower Handler Button
7-ROW-TRAK Engage Button
|
8-Auto Mode-Engage/Disengage Button (Round Module Builder)
9-Raise/Lower Units Button
10-Fan Switch
11-Units Switch
12-Height Sensing Response Rate Dial
13-ROW-TRAK Right/Left Bias Dial
14-Accessory Outlet
15-Mode Select Button
|
16-Cancel Button
17-Confirm Button
18-Solution PSI Button
19-Right-Hand Units Height Adjust Button
20-Manual Wrap Button
21-Solution Flush Button
22-ROW-TRAK On/Off Button
23-Road/Field Mode Button
24-Left-Hand Units Height Adjust Button
25-ProDrive Transmission Range 2 Button
|
26-ProDrive Transmission Range 1 Button
27-Differential Lock Button
28-Park Brake Button
29-Engine Speed Button, Low
30-Engine Speed Button, Medium
31-Engine Speed Button, High
32-Main Menu Button
33-Selection Dial
|
