Raise/Lower Handler and Auto Return Switch

NOTE: The raise/lower handler switch has multiple functions.

Harvest mode required for handler switch to work.

Auto dump and auto return functions only operate with ground speed.

Operating in Auto Mode: Press, to first detent, top of raise/lower handler button (A) to raise handler. Press, to second detent, top of button to engage auto handler return functions. Press, to first detent, bottom of raise/lower handler button (A) to lower handler. Press, to second detent, bottom of button to engage auto handler dump function. Middle position of switch is "OFF" position.

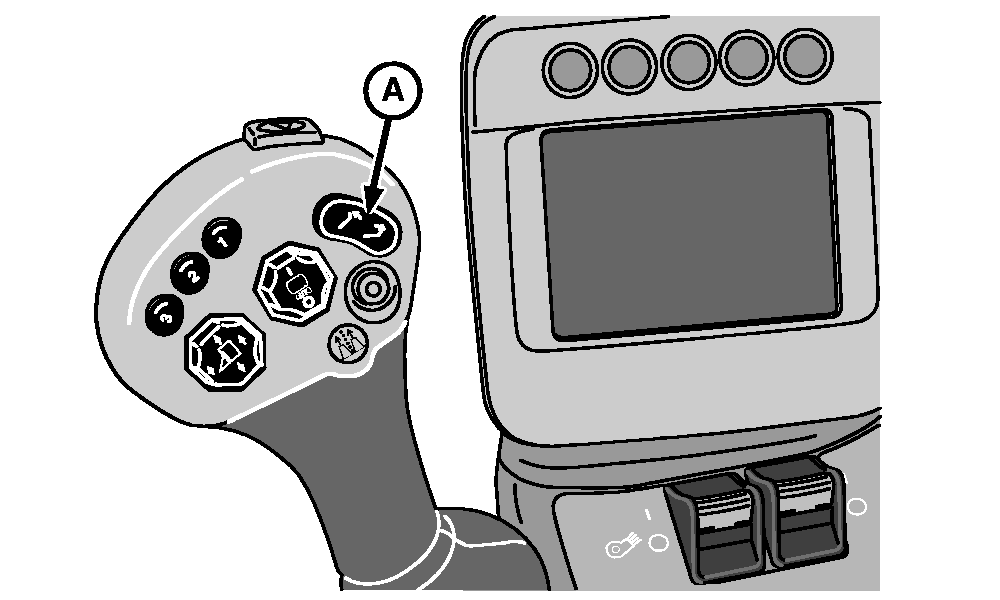

A-Raise/Lower Handler Switch

OUO1078,000054C -19-11MAR09-1/1
