Check Hydrostatic/Hydraulic Oil Level

For proper check of hydrostatic/hydraulic oil, lower row units and verify module builder is in operating position. Top of oil level should be visible in oil reservoir sight glass (A). Remove cap (B) and add oil if necessary. (See HYDRAULIC/HYDROSTATIC AND TRANSMISSION/BRAKE OILS in Fuels, Lubricants and Coolants section for proper hydraulic oil specifications.)

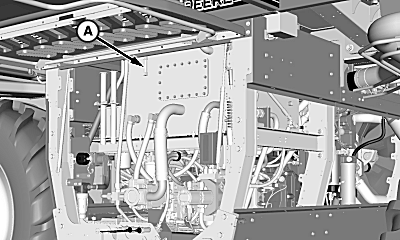

A-Oil Reservoir Sight Glass

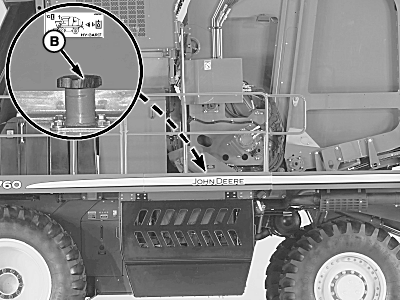

B-Cap

OUO1078,0000576 -19-17MAR09-1/1
