Starting Engine

IMPORTANT: Certain precautions should be taken when starting an engine in cold temperatures. (See STARTING ENGINE IN COLD WEATHER and WARMING ENGINE in this section to avoid damage to engine.)

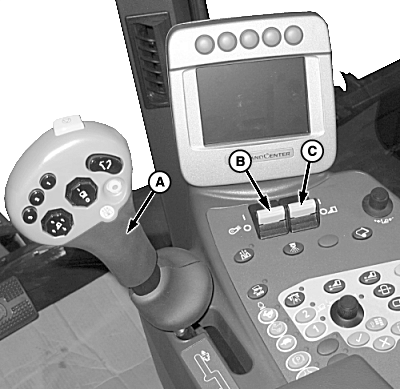

NOTE: Picture of control console does not necessarily indicate the position of levers and switches stated in steps.

2. Place fan switch (B) and row units switch (C) in off position.

3. Turn off all accessories such as radio, lights, heater/air conditioning fan, and windshield wiper.

A-Multifunction Control Handle
B-Fan Switch
C-Units Switch

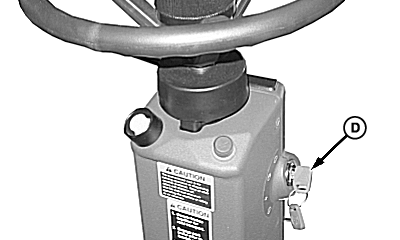

D-Key

OUO1078,000057F -19-18MAR09-1/2

CAUTION: Sound horn before starting engine to warn others to stay clear from machine.

To avoid the possibility of personal injury or death, start engine ONLY from operator seat. Do not start engine by shorting across starter terminals. Machine will start in gear if bypassed.

IMPORTANT: To prevent starter damage, do not operate starter for more than 30 seconds at a time. If engine does not start, wait at least two minutes before trying again.

NOTE: If temperature is below -5°C (23°F) it may be necessary to use ether aid, (see Ether Aid in Operating the Engine section).

When key switch is turned to "START" a delay of a couple seconds will occur. This allows controllers to power up, relays to close, and starter solenoid to energize.

Decal (A) on storage box lid shows engine starting information.

4. Sound horn and turn key switch (B) located on steering column to "START" position.

Key positions are:

NOTE: Diagnostic Trouble Codes (DTC) will display if Stop Engine Code appears on CommandCenter display. Display stops normal functions, indicating a problem that requires the machine be stopped and the problem corrected immediately. Codes are displayed until the problem is resolved. If problem cannot be resolved, see your John Deere dealer.

5. Release key after engine starts and let engine run at low idle for five minutes to warm oil.

A-Decal
B-Key Switch

OUO1078,000057F -19-18MAR09-2/2
