Height Sensing Response Rate Dial

NOTE: By slowing the responsiveness of the system, row units can run more smoothly in no-till and lake bed conditions.

Rotate height sensing response rate dial (A) clockwise to speed response time and counterclockwise to slow response time of row units. (See Header Height Control section for details.)

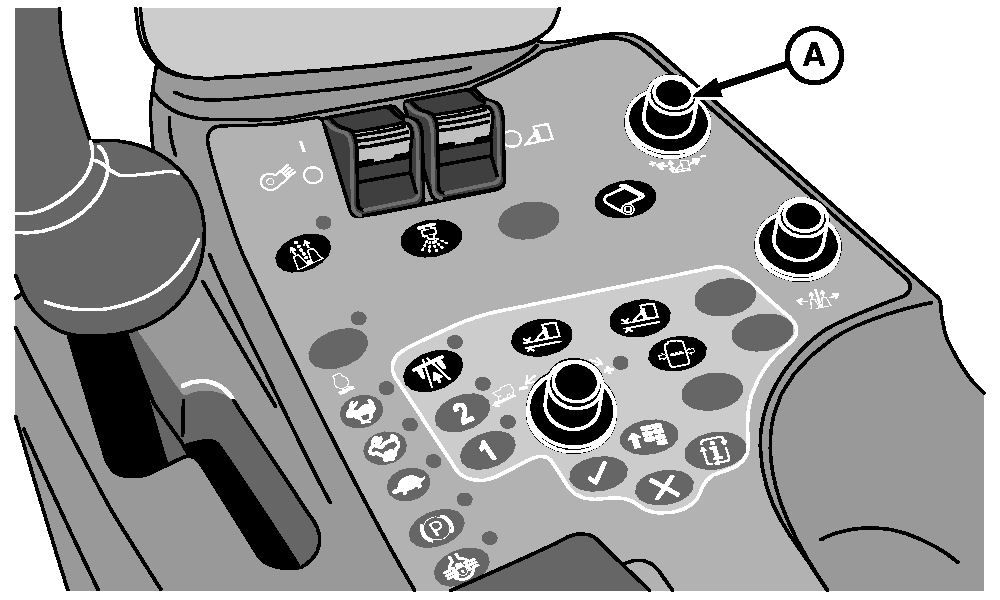

A-Height Sensing Response Rate Dial

OUO1078,00005A6 -19-12MAR09-1/1
