Road/Field Mode Button

IMPORTANT: Do not operate machine at full speed (Range 2) if machine is in harvest mode.

Field Mode: Green LED light next to button (A) is not lit. Range 1 is 0-4.2 mph and range 2 is 0-5 mph.

Road Mode: Green LED light next to button is lit. When button is pushed machine defaults to road mode range 1. Range 2 can be selected to allow speeds up to 17 mph.

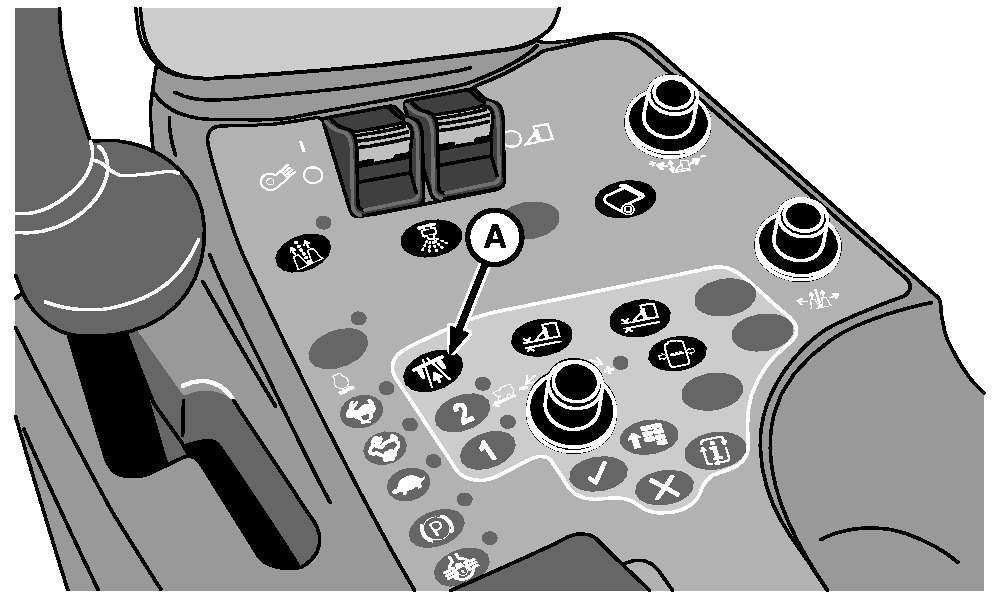

A-Road/Field Mode Button

OUO1078,00005AD -19-12MAR09-1/1
