ProDrive Transmission Mode 1 Button

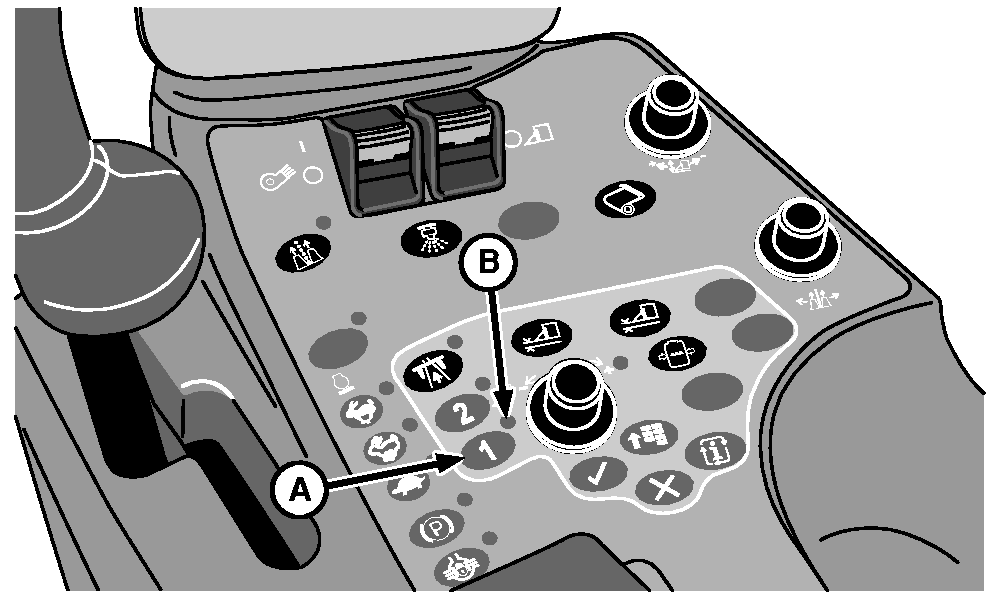

ProDrive transmission mode 1 button (A) controls ground speed of transmission electrically. Indicator (B) illuminates indicating which button was selected. Mode 1 is set to 6.8 km/h (4.2 mph) field and 14.5 km/h (9.0 mph) road.

A-ProDrive Transmission Mode 1 Button
B-Indicator Light

OUO1078,00005B3 -19-12MAR09-1/1
