Parking Brake Button

Parking brake button (A) manually engages/disengages parking brake.

NOTE: Manual parking brake engagement is only possible if ground speed is below 3 km/h (1.9 mph) with multifunction control handle in forward or reverse travel position.

Automatic Mode:

The system will engage the parking brake each time multifunction control handle is set to neutral position or if engine is shut OFF. Park brake indicator (B) will flash when it is engaged with neutral position of the multifunction control handle. Park brake indicator will be solid when activated with park brake button.

Manual Engagement:

Press parking brake button (A) to set parking brake. Armrest display Unit (ADU) shows a solid parking brake symbol indicating brake is engaged.

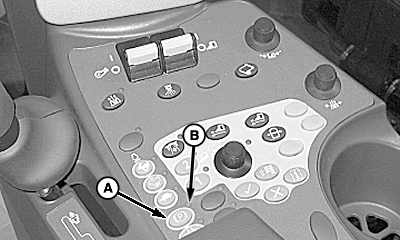

A-Park Brake Button
B-Park Brake Indicator

OUO1078,00005B5 -19-12MAR09-1/1
