Turn Signals

When operating machine on road or highway, use turn signals.

NOTE: Turn signals are not self-cancelling, turn signal lever (A) must be returned to neutral position manually.

Key switch must be on for turn signals to operate.

Move turn signal lever down to signal left-hand turn; up for right-hand turn.

When a turn is signaled, front amber light (B) and rear lights (C and D) on turn side will flash while lights on opposite side of machine illuminate steady.

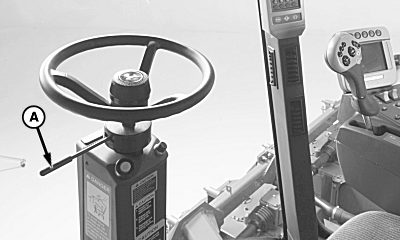

A-Turn Signal Lever

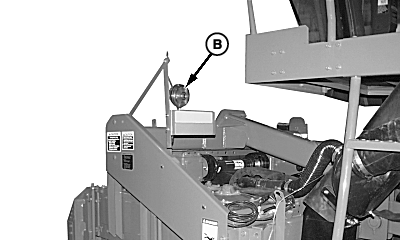

B-Front Amber Light

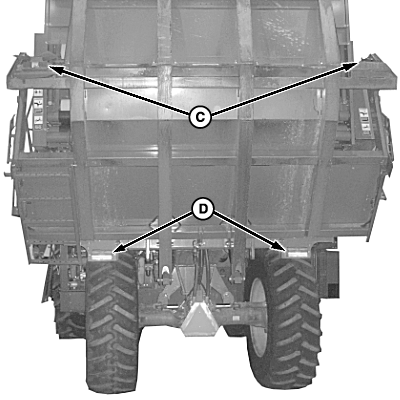

C-Rear Lights (Transport Mode)
D-Rear Lights (Harvest Mode)

OUO1078,00005C0 -19-13MAR09-1/1
