Hazard Lights

causym CAUTION: Warning lights must be turned on when transporting to alert other drivers.

To avoid motorist confusion, do not operate work lights when transporting on public roadways.

When transporting on a road, flashing amber warning lights (A-C) give warning to other drivers. These lights are located on both sides at the front and rear of machine.


A-Amber Warning Lights
B-Amber Warning Lights (Transport Mode)
C-Amber Warning Lights (Harvest Mode)

N69600

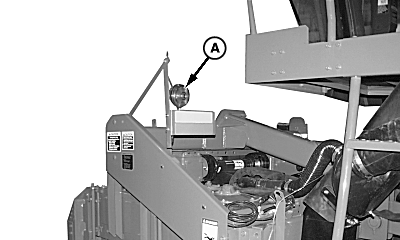

Front Hazard Lights (Left-Hand Side)

N69601
N75985

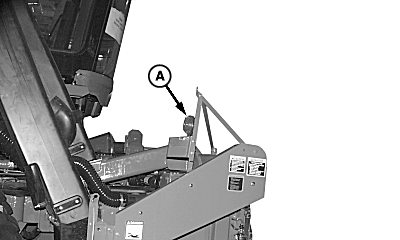

Rear Hazard Lights

OUO1078,00005C1 -19-13MAR09-1/1
