Operating Tachometer

To display specific data press switches (B-D) as follows:

  • Engine rpm, press switch (B).
  • Fan speed, press switch (C).
  • Solution pressure, press switch (D).

NOTE: The top line currently displays fan speed and the bottom line engine rpm.

The operator can display engine rpm, fan speed, and solution pressure on either line.

Press line select switch (E) to select between the two lines of information. Arrow (A) shows the operator the line that can be changed.

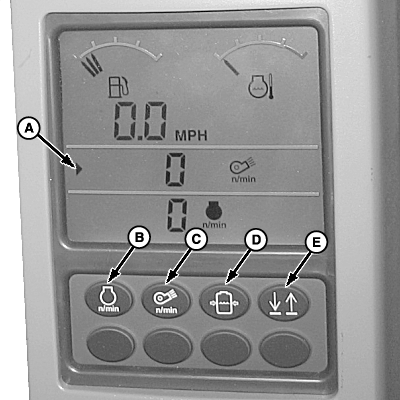

A-Line Select Arrow
B-Engine RPM Switch
C-Fan Speed Switch
D-Solution Pressure Switch
E-Line Select Switch

N80725

OUO1078,00005CE -19-13MAR09-1/1
