Changing Starting Fluid Cans

causym CAUTION: Starting fluid is highly flammable and can cause serious injury or death to you or others if it is accidentally ignited. DO NOT use near fire, sparks, or flames. Read the cautionary information on the container. Protect container against damage.

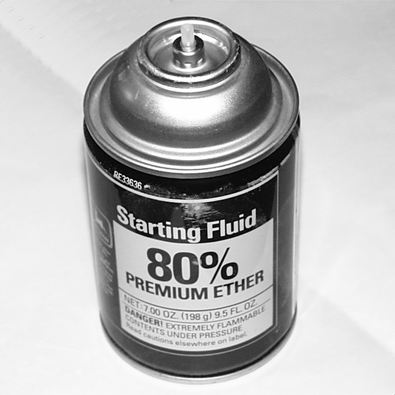

Pressurized cans of starting fluid are available from your John Deere dealer. Protect starting fluid can from damage or extreme heat.

TS1356
N51050

OUO1078,00005D8 -19-11JUN07-1/2

IMPORTANT: To avoid drawing dust into engine, ALWAYS keep a starting fluid can in position or clean bottom of canister and install bottom side up.

1. Remove safety cap and plastic nozzle from new can.

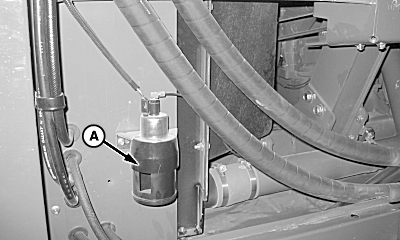

2. Remove canister (A) and install new can. Tighten canister securely.


A-Canister

N76539

OUO1078,00005D8 -19-11JUN07-2/2
