Replacing Dome Light Bulbs

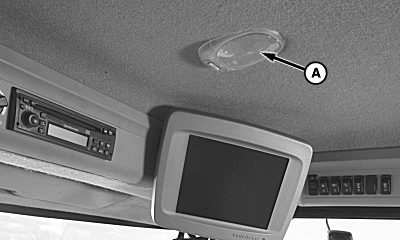

1. Carefully pry lens cover (A) out of dome light housing.

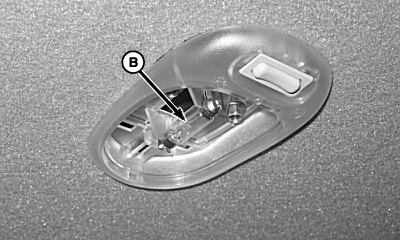

2. Remove faulty dome light bulb (B). (See BULB PART NUMBERS in this section for proper replacement.)

3. Install bulb and cover.


A-Lens Cover
B-Dome Light Bulb

N80087
N80088

OUO1078,0000653 -19-26MAR08-1/1
