Install Scrapping Plates (Attachment)

NOTE: Install scrapping plates to increase efficiency in short, knotty cotton or during last picking.

Use of scrapping plates is not recommended for first picking in heavy cotton.

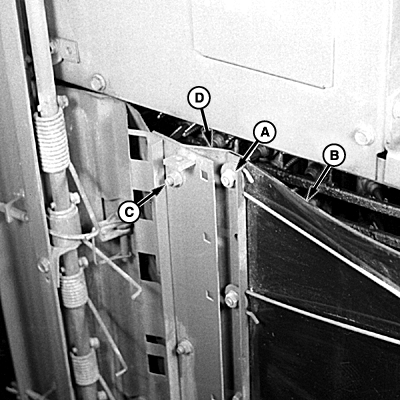

1. Remove five M10 x 20 cap screws (A), nuts and extension (B).

2. Remove five M10 x 25 cap screws (C), nuts and pressure plate (D).


A-Cap Screws, M10 x 20
B-Extension
C-Cap Screws, M10 x 25
D-Pressure Plate

N56559

OUO6043,0001476 -19-21MAR06-1/2

NOTE: Position 4-spindle scrapping plates (B) at top and bottom with 10-spindle plate (C) in-between.

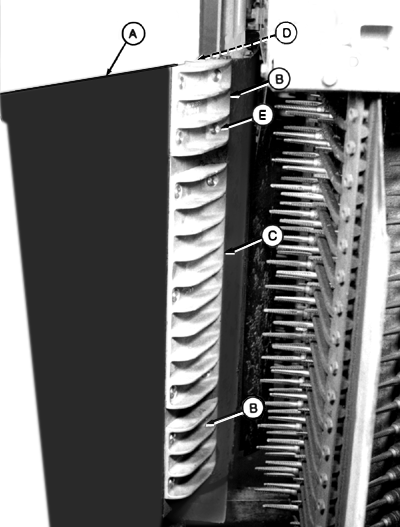

3. PRO-12 Units : Attach extension (A) and 4-spindle scrapping plates (B and C) to inside of pressure plate (D) using four M10 x 30 plow bolts (E) and nuts each. Attach 10-spindle center scrapping plate (C) between 4-spindle scrapping plates using five M10 x 30 plow bolts and nuts.

PRO-16 Units: Install extension and two 10 spindle plates using twelve M10 x 30 plow bolts with lock nuts.

4. Tighten all hardware.


A-Extension
B-4 Spindle Plate (2 used, PRO-12 only)
C-10 Spindle Plate (1 used, PRO-12), (2 used, PRO-16)
D-Pressure Plate
E-Plow Bolts, M10 x 30 (13 used, PRO-12), (12 used, PRO-16)

N42182OG

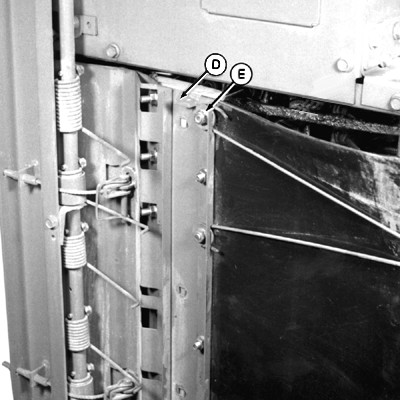

N42182OH

OUO6043,0001476 -19-21MAR06-2/2
