Removing and Cleaning Roof Air Inlet Panel

Recommended Service Interval
Remove And Clean Roof Air Inlet Panel Annually



1. Remove four screws (A).

NOTE: Air is brought in through the left-hand side panel only.

2. Remove panel (B).

causym CAUTION: Compressed air can cause dust and debris to become airborne which can cause serious injury to you or others by striking eyes or unprotected areas. Reduce compressed air to less than 210 kPa (2.1 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders. Guard against flying chips and wear personal protection equipment including eye protection.

3. Clean with compressed air or water. Re-install panel and screws.

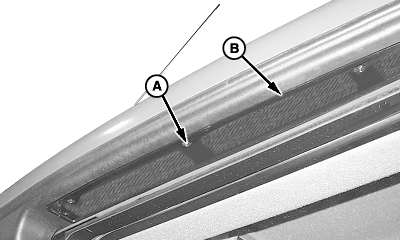

N71921


A-Screw (4 used)
B-Panel

OUO6043,00014E3 -19-17MAR06-1/1
