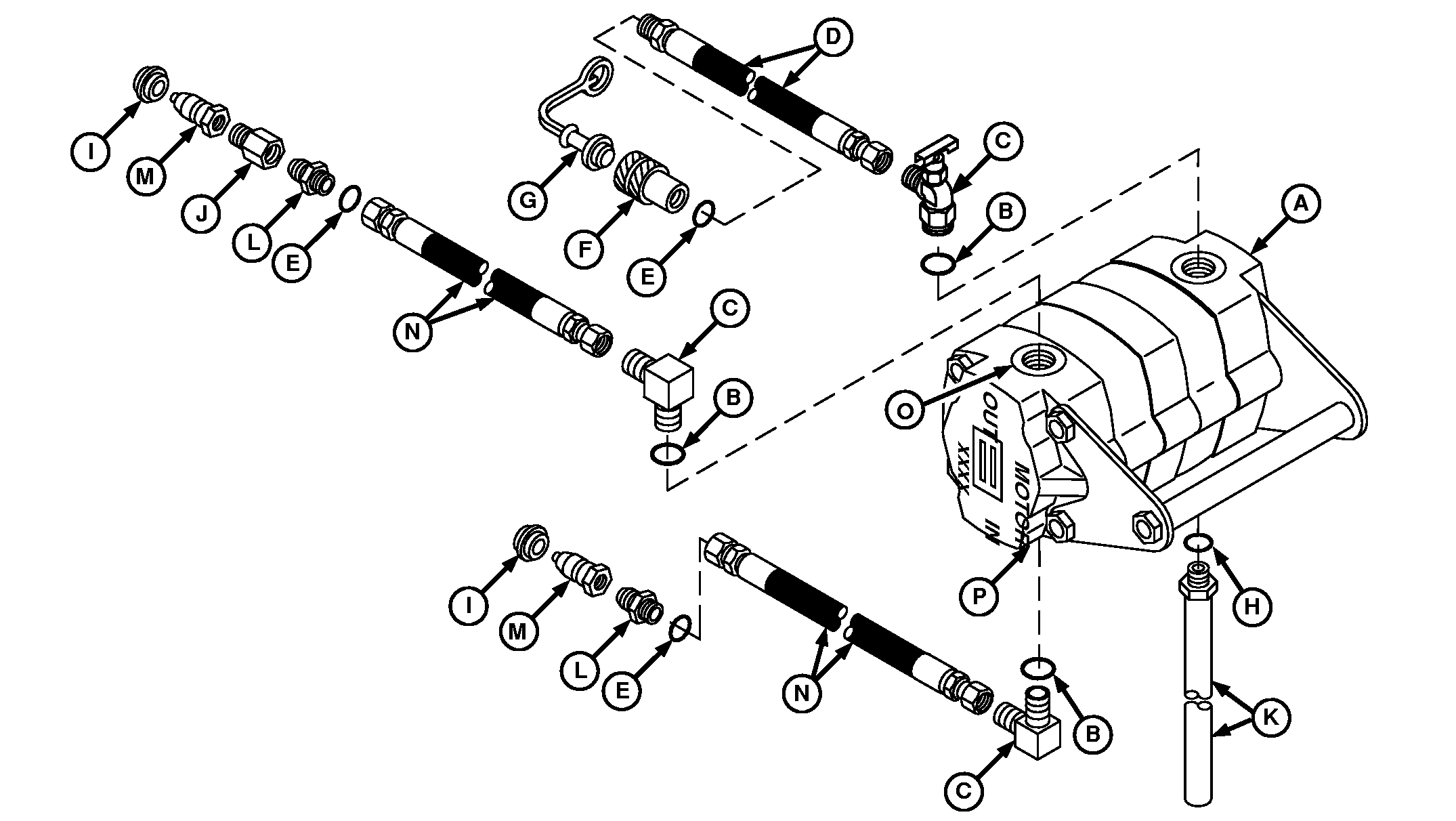

A-Pump
B-O-Ring, 19.18 x 2.46 mm
C-Elbow Fitting
D-Hydraulic Hose
E-O-Ring, 16.36 x 2.2 mm

F-Hydraulic Quick-Connect Coupler
G-Cap
H-O-Ring, 29.74 x 2.95 mm

I-Cap
J-Check Valve
K-Suction Tube
L-Connector

M-Internal Half Coupler
N-Hydraulic Hose
O-Hydraulic Oil "Out" Port
P-Hydraulic Oil "In" Port

NOTE: Check Valve (J) must be installed in return line ("out" port (O) on pump) as shown, or oil will not flow through pump.

Remove and identify all parts from bundle.

Assemble pump, suction tube and hoses using diagram.

OUO6043,0001582 -19-25MAY05-1/1
