Adjusting Rotary Screen Trash Expeller

1. Remove all dirt and trash buildup between trash expeller (B) and rotary screen (D).

2. Verify clearance between trash expeller and rotary screen is adjusted to specification.

Specification

Trash Expeller-to-Rotary Screen -Clearance 12 mm  (0.5 in.)

To adjust clearance between trash expeller and rotary screen:

a. Release retaining strap (A).

b. Loosen hose clamp (C).

c. Rotate and adjust expeller as required.

d. To complete adjustment, tighten hardware in reverse order.

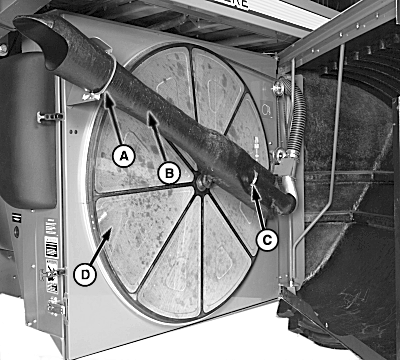

N80602


A-Retaining Strap
B-Trash Expeller
C-Hose Clamp
D-Rotary Screen

OUO6092,0000016 -19-01MAY08-1/1
