Bleeding Grease Pump

If chime sounds and row units are not receiving lubricant, bleed grease pump located left side mainframe inboard. To bleed:

1. Open grease pump bleed screw (A).

2. Operate Unit Lubrication System. Verify grease is coming out of the bleed screw. If grease is dispersed, continue to step 4. (See Lubrication System in the Troubleshooting section if grease is not dispersed from bleed screw).

3. Close bleed screw.

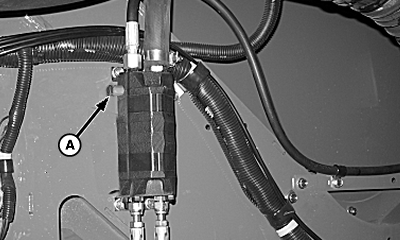

N80604


A-Grease Pump Bleed Screw

OUO6092,000001B -19-12MAY08-1/1
