Replacing Rotary Screen Drive Belt

causym CAUTION: Sudden movement of rotary screen and drive belt can cause serious injury or death to you or others. Shut off engine and remove key before replacing rotary screen drive belt.

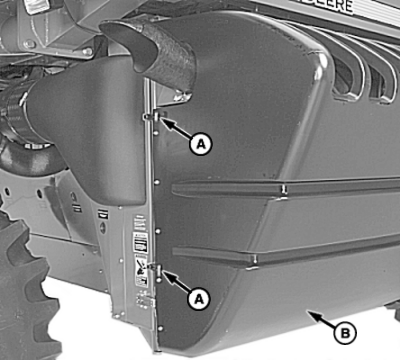

1. Unhook latches (A) and open door (B).


A-Latches
B-Door

TS285
N75134

OUO6092,000002E -19-12MAY08-1/3

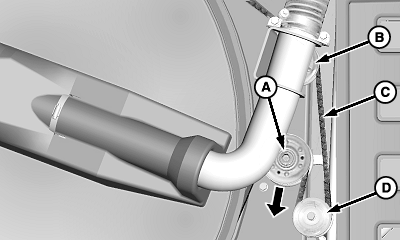

2. Pull down on spring loaded idler pulley (A) and remove belt (C) from idler pulley (B) and drive sheave (D).


A-Spring Loaded Idler Pulley
B-Idler Pulley
C-Belt
D-Drive Sheave

N71836

OUO6092,000002E -19-12MAY08-2/3

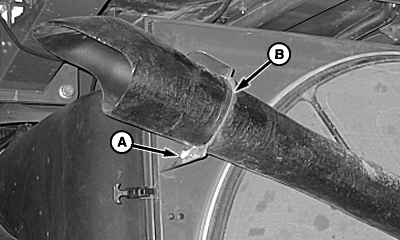

3. Release latch (A) and lift retaining strap (B) up to release trash expeller.

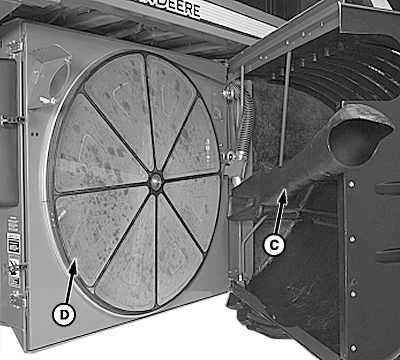

4. Pull trash expeller (C) out away from screen (D) and remove belt.

5. Install replacement belt in reverse order. (See BELT ROUTING-ROTARY SCREEN in this section.)


A-Latch
B-Retaining Strap
C-Trash Expeller
D-Rotary Screen

N75192
N75477

OUO6092,000002E -19-12MAY08-3/3
