Cleaning Rotary Screen, Trash Expeller, Oil Cooler, Transmission Cooler, Fuel Cooler, Condenser, Radiator and Air-to-Air Cooler

OUO6092,000002F -19-12MAY08-1/5

CAUTION: Sudden movement of rotary screen or machine can cause serious injury or death to you or others. Turn off engine and remove key before cleaning rotary screen and cooling package.

Reduce compressed air to 210 kPa (2 bar) (30 psi) or less when using for cleaning purposes. Clear area of bystanders, guard against flying debris and wear personnel protection equipment, including eye protection.

1. Unhook latches (A) and open door (B).

A-Latches
B-Door

OUO6092,000002F -19-12MAY08-2/5

3. Pull trash expeller (C) out away from rotary screen (D).

A-Latch
B-Retaining Strap
C-Trash Expeller
D-Rotary Screen

OUO6092,000002F -19-12MAY08-3/5

IMPORTANT: Avoid fin damage when using high pressure air or water when cleaning cooling cores. Use a fin comb to straighten bent fins. Bent fins will decrease cooler performance.

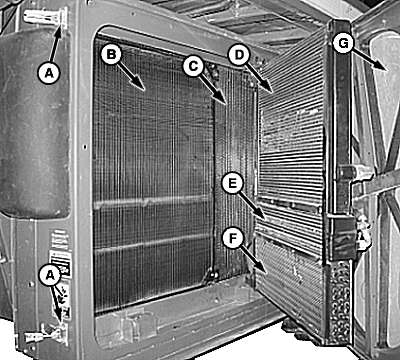

4. Release latches (A) and open cooling package.

NOTE: When using compressed air to clean rotary screen, blow from the inside of screen out.

5. Clean cooling cores (B-F) and inside of rotary screen (G) using a brush and compressed air as necessary.

6. Close cooling package.

A-Latches
B-Radiator
C-Air-To-Air Cooler
D-Oil Cooler
E-Transmission Cooler
F-Fuel Cooler/Air Conditioner Condenser
G-Rotary Screen

OUO6092,000002F -19-12MAY08-4/5

8. Secure trash expeller (C) with retaining strap (B) and latch (A).

9. Verify rotary screen (D) rotates freely.

A-Latch
B-Retaining Strap
C-Trash Expeller
D-Rotary Screen

OUO6092,000002F -19-12MAY08-5/5
