Cold Weather Operation

IMPORTANT: Damage can occur to moistener system if machine is left outside in extreme cold weather. Follow the procedure listed below if machine will be left outside in extreme cold weather.

Solution pump damage can occur if pump is operated without water in system.

1. Drain moistener system tank by opening valve (B).

2. Open drain valve on pump (A).

3. Remove strainer bowl (C).

4. Replace strainers, close drain valves, and refill moistener system before operating machine.

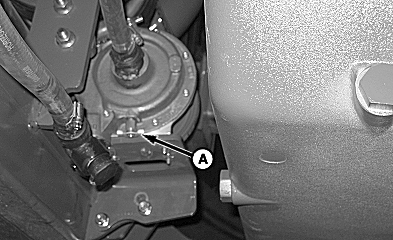

A-Drain Valve on Pump

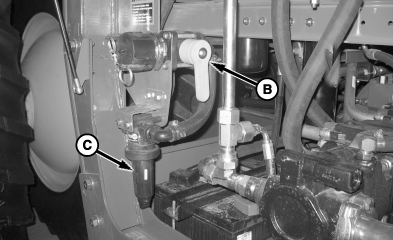

B-Valve
C-Strainer Bowl

RG53986,0002958 -19-04FEB08-1/1
