Cleaning Strainer

Recommended Service Interval
Clean Solution Strainer Every 10 Hours

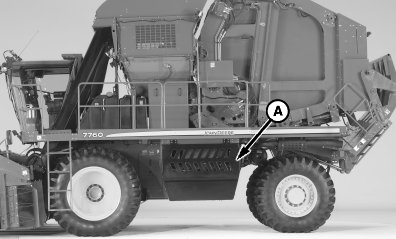

1. Open hydro module door (A) to access strainer.

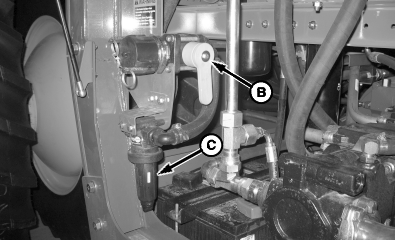

2. Close valve (B).

3. Firmly grasp strainer bowl (C) and turn counterclockwise to remove.

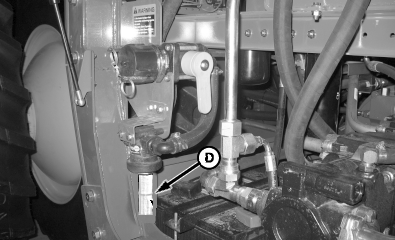

4. Remove and clean 100 mesh strainer (D) daily.

5. Install in reverse order of removal.


A-Hydro Module Door
B-Valve
C-Strainer Bowl
D- Mesh Strainer

N79901
N79900
N79899

RG53986,0002961 -19-05FEB08-1/1
