Cleaning/Replacing Onboard Lubrication System Filters

Recommended Service Interval
Clean/Replace Lubrication System Filters Every 250 Hours



IMPORTANT: Internal machine damage can occur. Keep the cap clean and ON the fitting when not filling the onboard lubrication tank to prevent system contamination.

1. Open hydro module door on left-hand side of machine.

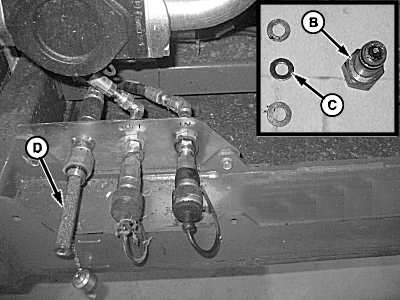

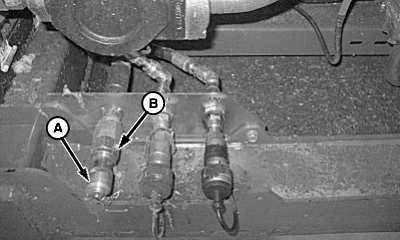

2. Remove cap (A), outer coupler fitting (B) and, washers (C).

3. Remove filter (D) and clean in solvent or replace if damaged.

4. Install filter, fitting, washers and cap in reverse order of removal.


A-Cap
B-Coupler Fitting
C-Washer (3 Used)
D-Filter

N79920
N79921

RG53986,0002967 -19-07FEB08-1/2

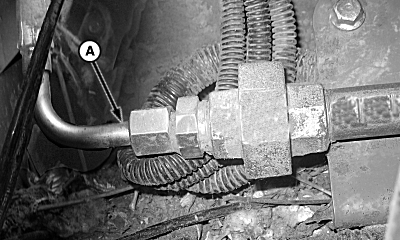

5. Disconnect line (A).

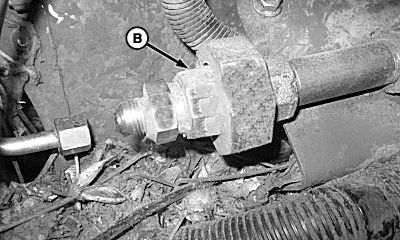

6. Disconnect union fitting (B).

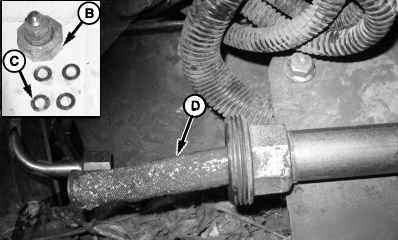

7. Remove washers (C) and filter (D).

8. Clean filter in solvent or replace if damaged.

9. Reassemble filter, washers and union in reverse order of removal.

10. Install control box cover.


A-Union Fitting
B-Filter
C-Washers (4 Used)

N79923
N79924
N79925

RG53986,0002967 -19-07FEB08-2/2
