Every 250 Hours of Operation

NOTE: If using Plus-50 ™ oil, service interval can be extended by 50 percent. EXAMPLE: 250 Hours would extend to 375 Hours.

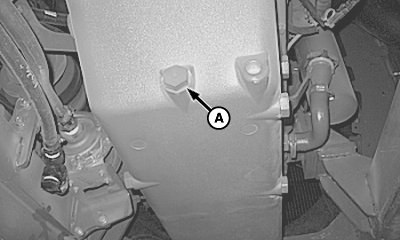

1. Remove plug (A) to drain crankcase oil. Replace crankcase drain plug.

2. Remove engine oil filter (B) and dispose of properly. Clean filter mounting pad, apply oil to gasket and install new element. Hand tighten only.

3. Fill crankcase with proper amount of engine oil. (See DIESEL ENGINE OIL in Fuels, Lubricants, and Coolants section for oil specifications and MACHINE SPECIFICATIONS in Specifications section for oil capacity.)

NOTE: Do not clean fuel strainer and change primary and secondary filters at the same time. Clean fuel strainer and run engine before changing primary and secondary fuel filters.

4. Clean or replace fuel strainer. (See REPLACING/CLEANING FUEL SEDIMENT STRAINER in Engine and Drive Train Section.)

5. Replace fuel filters (C and D). (See REPLACING PRIMARY AND SECONDARY FUEL FILTER ELEMENTS in Engine and Drivetrain section for proper procedure.)

N75197

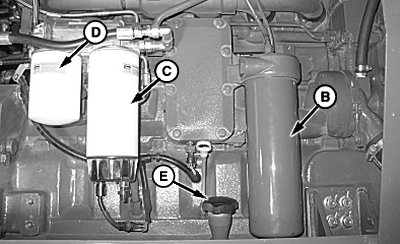

N75196


A-Plug
B-Oil Filter
C-Fuel Filter
D-Fuel Filter
E-Engine Oil Fill Location

Plus-50 is a trademark of Deere & Company

RS69585,000002C -19-02JUN08-1/3

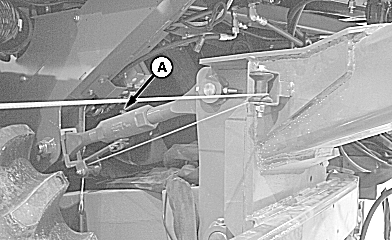

6. Lubricate fitting (A) on each turnbuckle.


A-Lube Fitting

N75211

RS69585,000002C -19-02JUN08-2/3

7. Clean or replace lubrication system filters inside fill port (A). (See CLEANING/REPLACING LUBRICATION SYSTEM FILTERS in Onboard Lubrication System section.)


A-Lubrication Fill Port

N75226

RS69585,000002C -19-02JUN08-3/3
