Adjusting Toe-In (Powered Rear Axle)

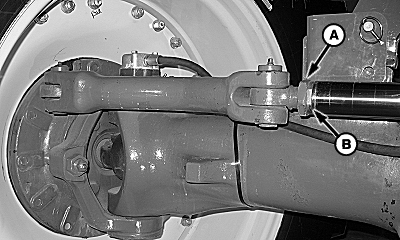

1. With steering wheels straight ahead, loosen locking nut (A) on both ends of steering cylinder. Turn rod end (B) until front of wheel toe-in is to specification.

2. Tighten locking nut (A) on each end of steering cylinder.

Specification

Toe-In --Rear-Front Dimension 4 ± 4 mm (0.16 ± 0.16 in.)


A-Locking Nut
B-Rod End

N75490
