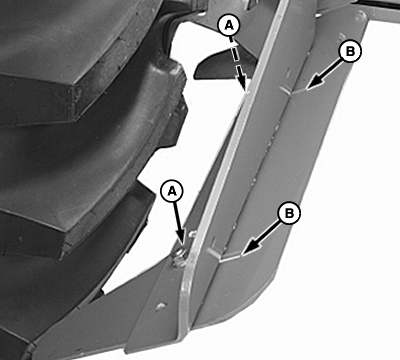

Adjusting Mud Scrapers (Attachment)NOTE: Scrapers are used to prevent accumulation of mud on the unit lift cylinders and unit pressure plates. The amount of clearance is determined by field conditions. 1. Loosen cap screws (A).2. Move scraper in or out in slots (B) to adjust clearance.
|
|
RS69585,0000051 -19-21MAR07-1/1 |
