Inspect Hydraulic/Hydrostatic Pump Area

Recommended Service Interval
Inspect Chassis Area, Clean As necessary Every 10 Hours

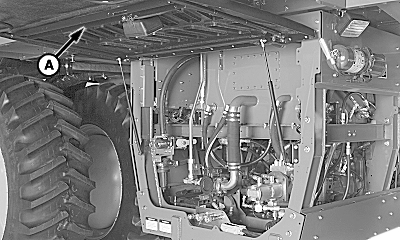

1. Open hydro module door (A). Check for cotton buildup, leaks or debris. Clean or repair as required to prevent damage.


A-Module Door

N75884

RS69585,0000055 -19-25APR07-1/2

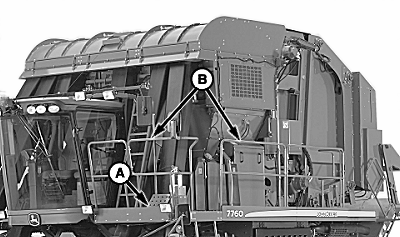

2. Inspect platform (A) and handrails (B) for cotton buildup or damage. Clean or repair as required.

N75294

RS69585,0000055 -19-25APR07-2/2
