Anhydrous Ammonia Preparation

causym CAUTION: Read all information in the safety section before working with anhydrous ammonia systems. Exposure to anhydrous ammonia can cause serious injury or death to you or others.

causym CAUTION: Keep bystanders away from machine when implement is being folded and unfolded and when application system is being charged with anhydrous ammonia.

1. Verify anhydrous ammonia hoses are properly routed away from all pinch points.

2. Verify hoses and knives are clean and ready for operation.

3. Visually inspect hoses and clamps for damage or wear.

TS220
TS272

KB78086,000029B -19-12JUN07-1/2

4. Verify supply hose date code.

N76746

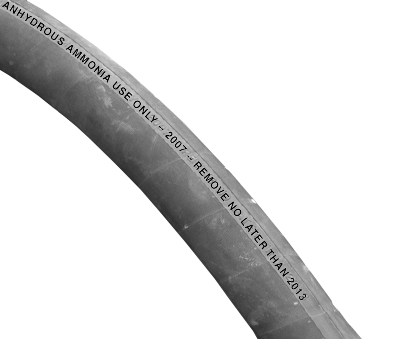

Supply Hose Date Code

KB78086,000029B -19-12JUN07-2/2
